NXP’s FRDM i.MX 91 Board Provides Low-Power Solution for Linux-Based IoT Systems
Quoting: NXP’s FRDM i.MX 91 Board Provides Low-Power Solution for Linux-Based IoT Systems NXP’s FRDM i.MX 91 Board Provides Low-Power Solution for Linux-Based IoT Systems —

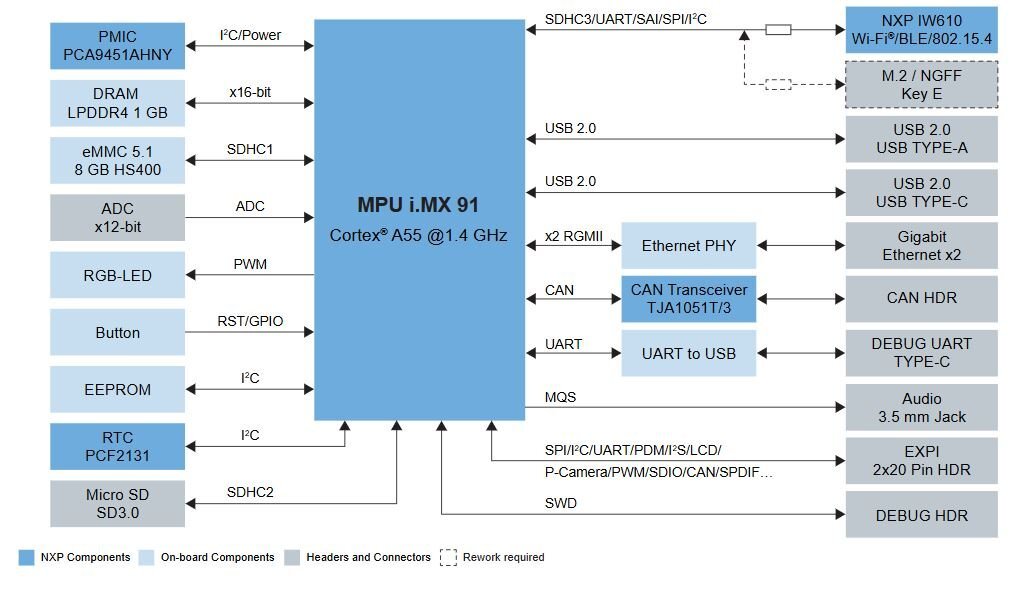

The board also includes two Gigabit Ethernet ports, USB 2.0 Type-A and Type-C connectors, CAN bus support, and UART via USB-C. For expansion, it provides a 40-pin GPIO header, along with additional headers for I²C and ADC access. Display and camera interfaces are supported via 40-pin parallel RGB and parallel camera connectors.
For debugging and development, the board includes an SWD interface and USB-based serial communication. Software support includes Linux and FreeRTOS, with integration into NXP’s Yocto-based BSP and Debian Linux SDK. These resources provide kernel, bootloader, and user-space components for evaluation and prototyping.
